Electric Coolant Heater

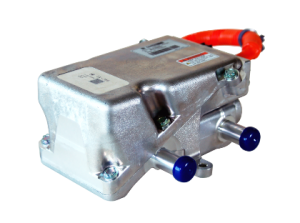

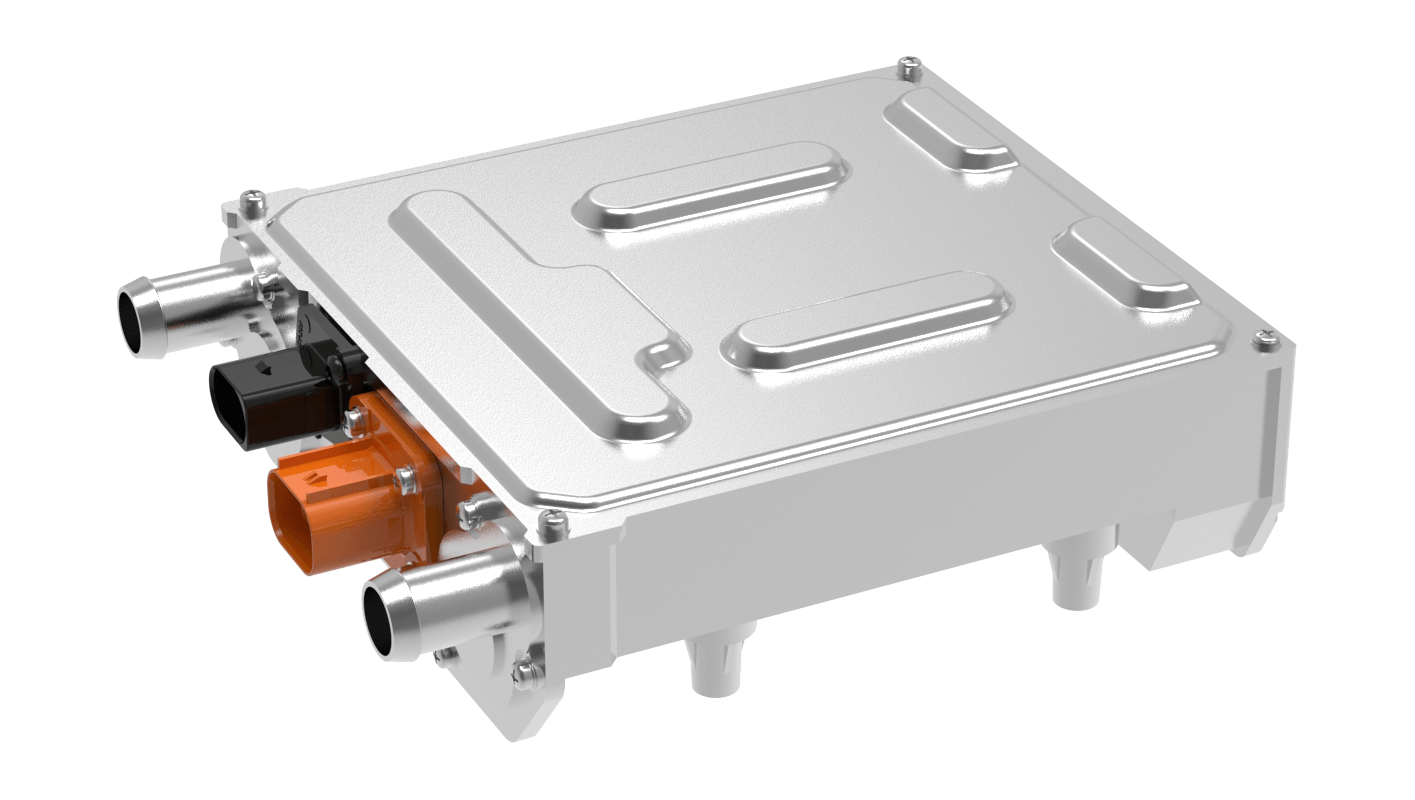

Sanden’s electric coolant heater efficiently warms coolant to support both battery conditioning and cabin climate control in electric vehicles. Drawing on decades of HVAC and compressor expertise, Sanden delivers industry-leading performance in a compact design.

Features

  • Flexible design with customizable connectors and inlet/outlet configurations
  • Integrated temperature sensors at coolant inlet and outlet
  • Dual control options: heating power request or outlet temperature.

Technical Specifications

  • Operates in temperatures from -40°C to +90°C
  • Delivers heating power between 7–12 kW
  • Maximum output achieved with longer cartridge design
  • Supports input voltage from 250V to 850V.

Key Technologies

  • LIN protocol communication
  • Designed with functional safety in compliance with ISO 26262.
